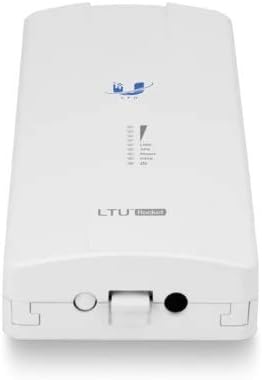

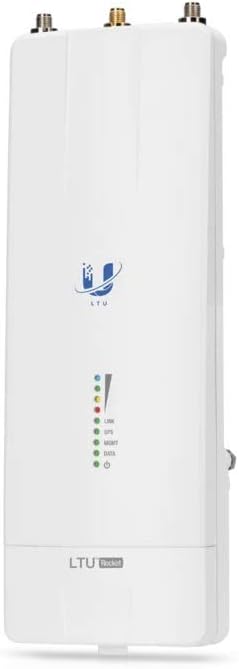

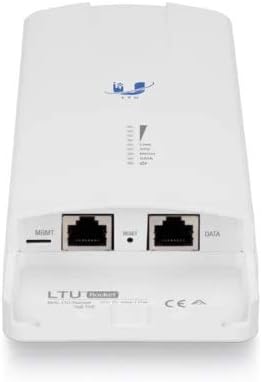

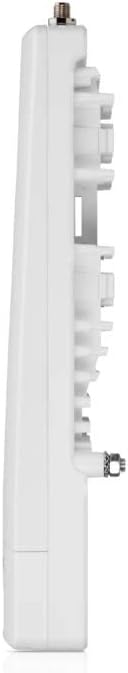

Ubiquiti LTU-Rocket 5 GHz Point to Multipoint LTU BaseStation Radio, White

The LTU Rocket is designed for WISPs from the ground floor up. Its core communications processing engine enables low latency, long-range capability, DFS flexibility, higher constellations, better power output, and improved receive sensitivity. Incorporating Ubiquiti's proprietary LTU technology, the LTU-Rocket is a Point-to-MultiPoint (PtMP) 5 GHz Access Point featuring 2+ Mpps processing, proprietary RF filtering, and flexible GPS sync for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. A custom co-processor is included for future performance and feature upgrades. Technical specifications: Networking Interface: (1) 10/100/1000 Ethernet Port, Enclosure: Diecast Aluminum and Polycarbonate, Max. Power Consumption: 15W, Power Supply: 24V, 1A Gigabit PoE Adapter (Included), Power Method: Proprietary 4-Pair Passive PoE Pins 1, 2; 4, 5+ and Pins 3, 6; 7, 8-, Voltage Range: +18 to +54VDC, GPS Antenna: External Magnetic Base, RF Connectors: (2) RP-SMA Weatherproof (CH0, CH1), (1) SMA Weatherproof (GPS), Operating Temperature: -40 to 55 Degrees C (-40 to 131 Degrees F)

• Functions in a PtMP environment using the Ubiquiti LTU-Pro and Ubiquiti LTU-Lite for subscriber stations. Also compatible with the Ubiquiti LTU-LR
• Features 600+ Mbps PtMP performance, up to 64 client connections per AP and 2+ Million pps
• The Ubiquiti LTU Rocket can use different channel frequencies for TX and RX to avoid interference
• The Auto Output Power option allows the Ubiquiti LTU Rocket to set the output power (EIRP) to the appropriate level
• A custom co-processor is included for future performance and feature upgrades
