KLUFO Spot Welder for Rechargeable Batteries Spot Welder Precision Pulse High Power Battery Welding Machine with Hand-Held Spot Welding Pen Dual-Use 18650 Battery Pack Welding Pen CE Certified

Whether you are engaged in electronic equipment maintenance, factory assembly line, battery production, technical school training, this spot welding machine can provide fast and accurate welding results! Features: 1. The welding tip has the function of LED light, which can be used for precise fixed welding. High-precision welding of six or three rows of batteries or single-cell batteries. Also provides fast battery welding. 2. Convenient to hold, double-click the solder pin to balance the spring pressure, and the solder joints are more balanced. Avoid flashover welding, realize one-handed operation, and the distance between welding points can be adjusted. 3. Compact body shape, combined with convenient handle; make it light and easy to move. Therefore, you can easily take it to where you want. Specification: Power supply voltage: AC220V/110V±20V Power: 3.8KW (instantaneous) Spot welding current: 800A Double pulse time: 1-10ms (adjustable) Four pulse time: 2-20ms (adjustable) Eight pulse time: 8-80ms (adjustable) Fixed head spot welding range: 0.05~0.35mm Spot welding range of spot welding pen: 0.05~0.2mm Adjustable welding pin spot welding pitch: 2~7mm The total length of the mobile spot welding pen: ≈580mm Cross-sectional area of ​​soldering pen cable: 16mm² Soldering pin size: 1.5mm×7mm Notice: 1. Please use a wall socket to ensure stable power supply. 2. The rated current of the release can reach 40-63A. 3. Please adjust the pressure regulator to appropriate parameters to ensure the welding effect.

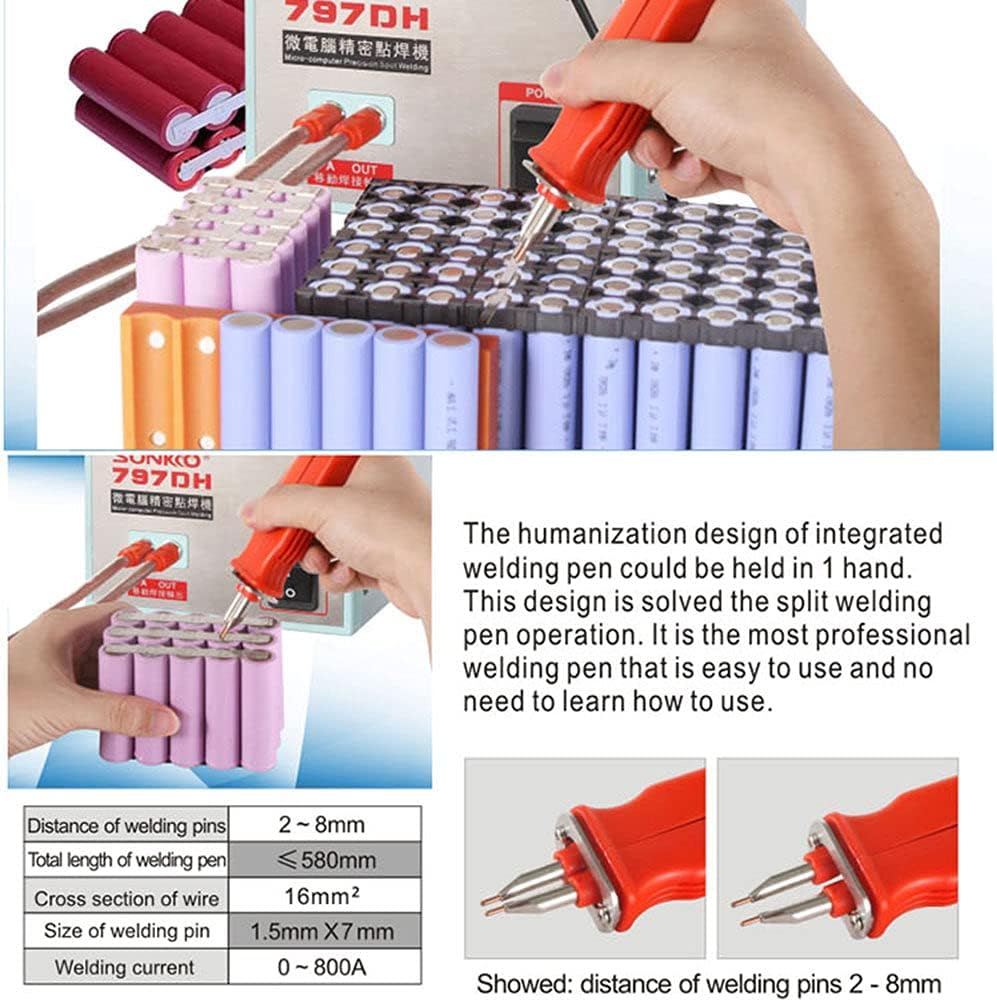

• 【Welding method】Two battery spot welding methods are provided: 1. Fixed welding head can weld 0.05-0.35mm thick nickel-plated nickel strips or 0.05-0.2mm pure nickel nickel strips; 2. Movable welding needles can weld 0.05-0.2 mm thick nickel-plated nickel belt or 0.05～0.15mm pure nickel-nickel belt.
• 【Pedal welding】It you need precise spot weld, pedal welding is made for you. By controlling the foot pedal, precise location and timing you want is well served for you.
• 【Cooling fan system】Equipped with an intelligent cooling system, a cooling fan is installed at the rear of the spot welder, and the cooling system function is activated when the internal temperature of the machine reaches the rated temperature.
• 【LED lighting function】The improved LED lighting is easy to illuminate the welding function. It is suitable for welding and assembly of battery packs in low-light environments, and is easy to use for employees with limited vision.
• 【Wide application】Used for welding of multi-row lithium battery packs, assembling and repairing electric vehicle battery packs. It is also suits for various sizes of battery pack, button battery, polymer battery and protection board, Apple mobile phone camera, stainless steel hardware, stainless steel mesh, etc.
