DROK DC Buck Converter Adjustable Color LCD Display, 6-55V to 0-50V 5A Step Down Converter Voltage Regulator Power Supply

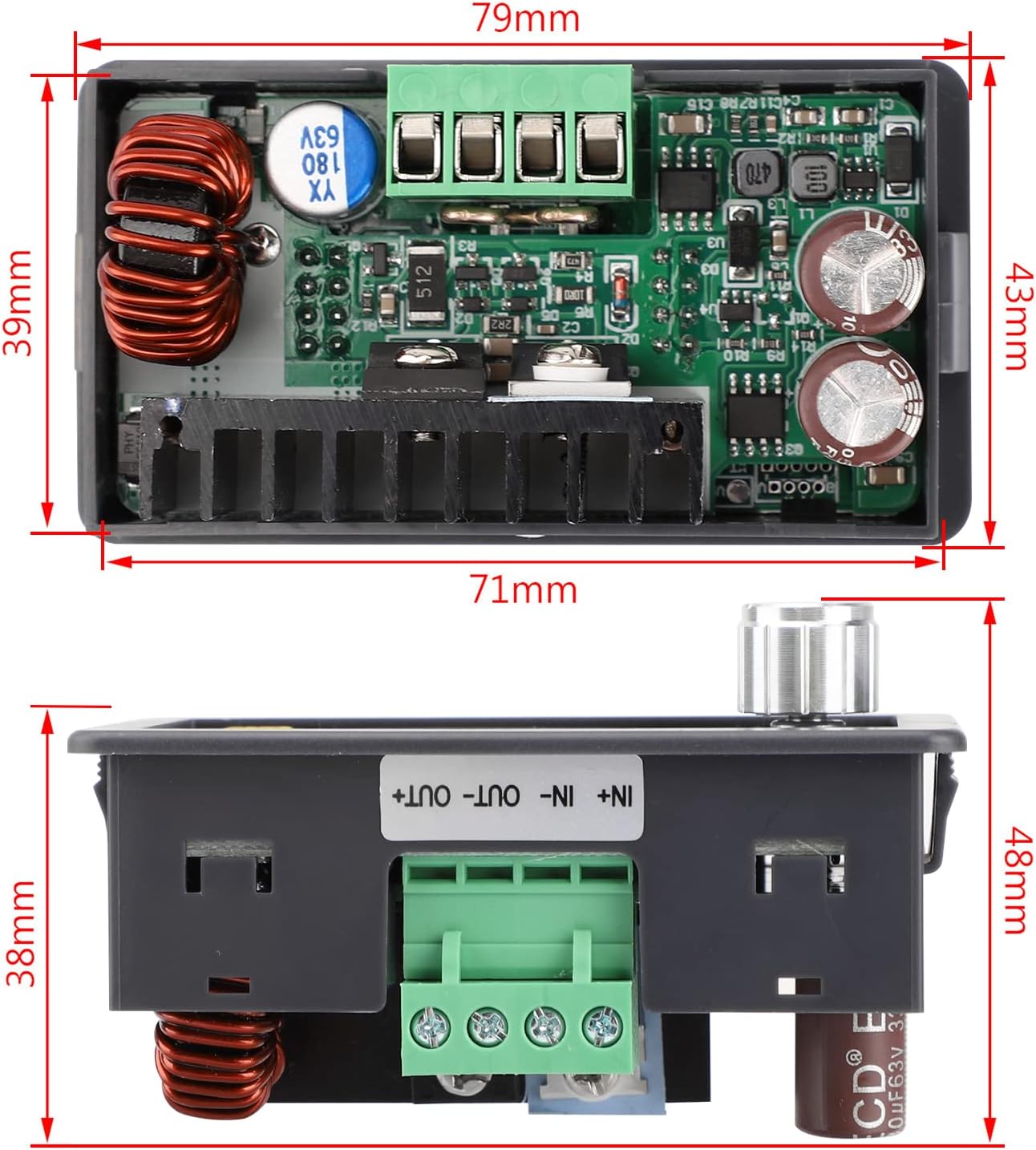

PARAMETERS: Input voltage range: DC 6-55V Output voltage range: DC 0-50V Output current range: 0-5A Output power range: 0-250W Output voltage resolution: 0.01V Output current resolution: 0.001A Output voltage measurement accuracy: (0.5% + 1 digit) Output current measurement accuracy: (0.5% + 2 digits) Product dimension: 79mm x 43mm x 48mm Open size: 71mm x 39mm Note: You must make sure that power supply input voltage must be 1.1 times more than the output. WIRING INSTRUCTION: IN+: input positive OUT+: output positive IN-: input negative OUT-: output negative WARM TIPS: 1. The input voltage range is DC 6-55V and 55V is the maximum voltage, so please leave room for usage, or the module will be burnt. 2. The input must be DC-DC, unable to use AC 220V to directly supply electricity, or else the module will also be burnt. 3. Although electric converter has input reverse polarity protection and output short-circuit protection, you must be in strict accordance with connection description to connect. If you connect power supply to the output terminal,This module may be burnt.

• DROK DC converter is the combination of analog integration and digital control. Its adjustable output voltage range is 0-50.00V, step by 0.01V; its adjustable output current range is 0-5.000A, step by 0.001A.
• This electricity converter owns power-down stored function and can store 10 groups preset value, besides, it can quickly extract two groups stored value.

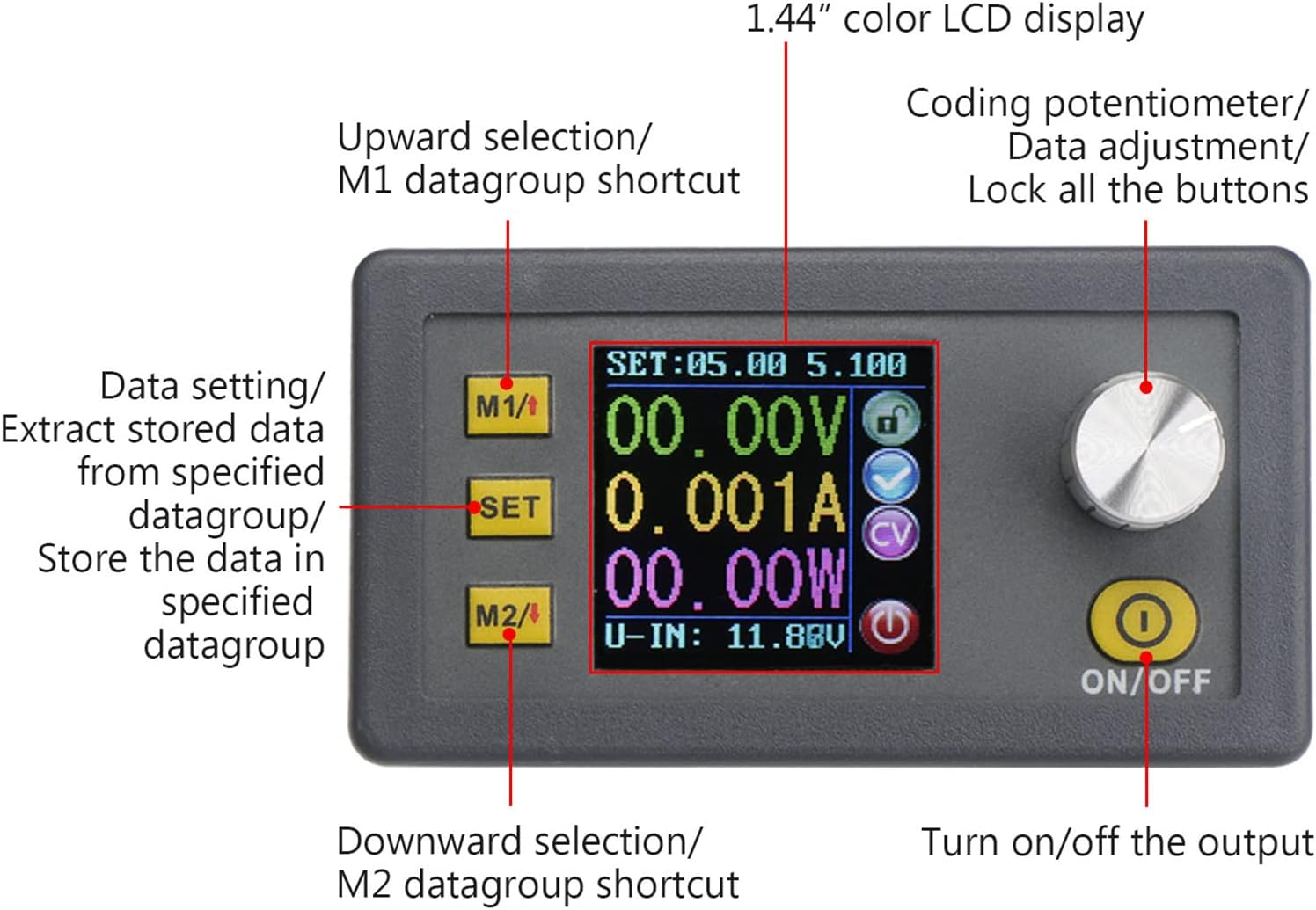

• Our voltage stabilizer is equipped with high quality LCD monitor. Through the LCD screen, it is convenient for you to check the preset voltage, input voltage, output voltage, the preset current, output current, output power, etc.
• The step down voltage converter has an intelligent long-life ball bearing fan which can turn on automatically when the output current is higher than 0.5A, effectively dissipate heat and provide stable high power output.
• Note: please note that 55V is limit maximum input voltage, please leave some room to use, otherwise it may be damaged; the input must be DC-DC, it will be destroyed if use AC 220V as power supply directly.
