ANT Smart BMS 17-24S Li-Ion LiFePo4 LTO Battery 60V 72V 84V 96V Continuous 50A Peak 125A Bluetooth Built-in Smart Balance Board Same Port 17S 18S 19S 20S 21S 22S 23S 24S

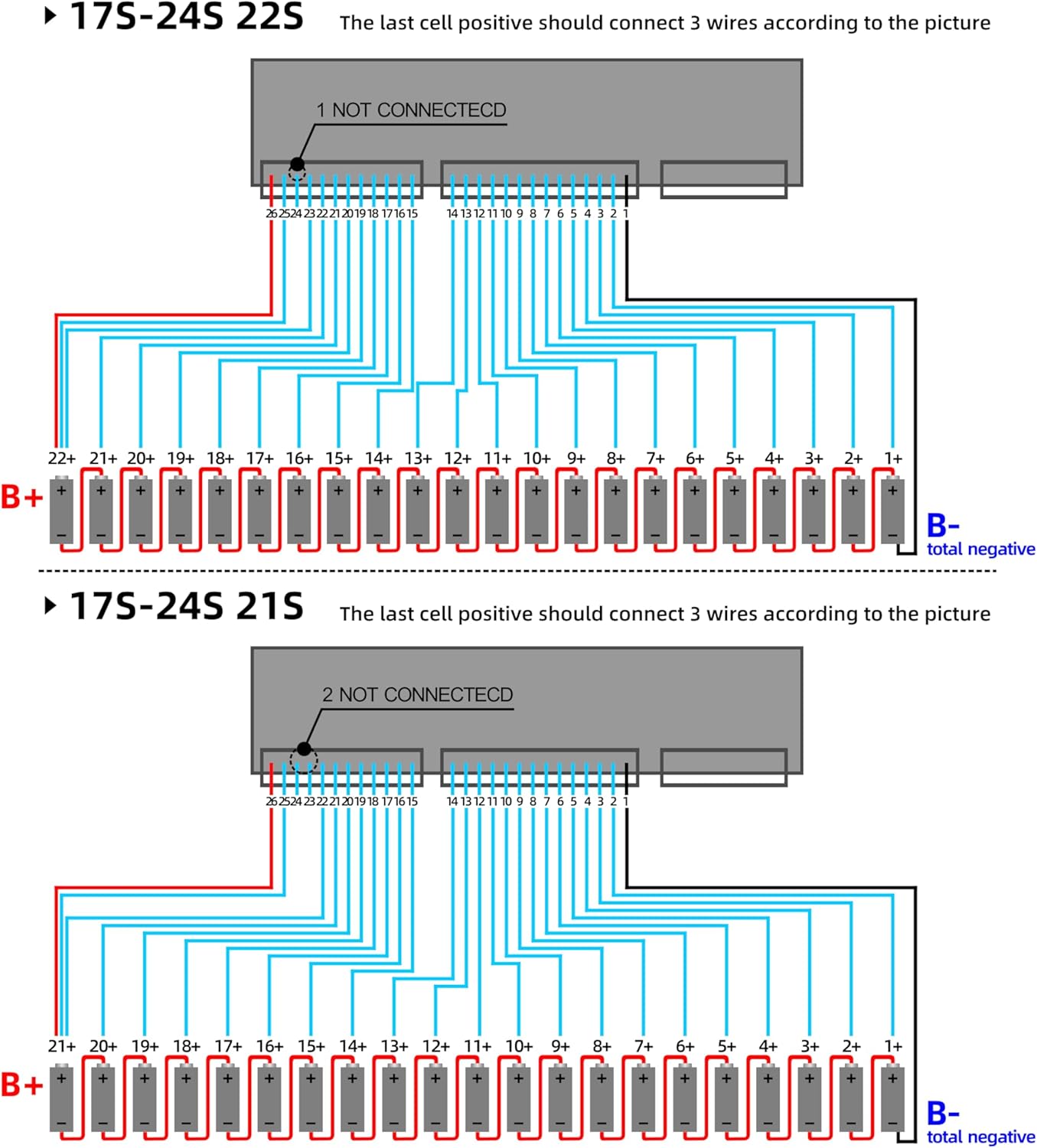

Open the mobile phone Bluetooth connection BMS ☆ Download link-IOS : Search (ANT BMS) in the APP STORE ☆ Download link-Andriod : Search (ANT BMS) in the Google STORENOTE： ☆ Strictly forbidden to reversely connect the B- and C- cables of the BMS, forbidden to confuse wiring ☆ Wiring must start from B- to B+ and be connected in sequence ☆ Measure the voltage of each battery string with a multimeter to ensure the correct line sequence ☆ Connect B- of BMS to the total negative of Battery Before Pluging the sampling cable into the BMS, Otherwise, the board will be burnt ☆ Please operate in strict accordance with the instruction manual and the guidance of customer service personnel when installing the BMS. If the BMS does not work or is damaged due to misoperation without following the instructions and customer service instructions, customer need to pay for repair or replacementCustomized RS485/CAN/modbus/Takeaway Leasing Tower , need to contact us and start at 100pcs

• Product：Support 17-24S，50A continuous，peak 125A
• Multiple Protection：Overcharge Protection; Overdischarge Protection; Overcurrent Protection; Short circuit
• Protection：Temperature Protection
• Applicable Battery Type：Li-ion、LifePo4、LTO
• Temperature Sensor：4
• Application Field：Power Battery、E-Bike、Electric Motorcycle、Electric Scooter and so on
• Communication Function：TTL
• Package：BMS*1、Temperature sensor*4、Battery Cable*1、Active Cable*1
• Note：Standard BMS Customized RS485/CAN/modbus/Takeaway Leasing Tower , please contact online customer service and start at 100pcs .We offer 24-hour one-on-one customer service and lifetime technical support.
