600A High Current Busbar 12-48V DC Heavy-Duty Nickel-Plated Copper Power Distribution Block 8xM10 (3/8") Terminal Studs with Cover Battery Bus Bar for Automobiles Boat RV Truck (Black)
4.6 (36 items)
Limited Time Sale$39.22 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209171558 | Release Date | 2026/03/29 | List Price | $26.15 | Model Number | 209171558 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Bus Bar Dimensions (L x W x H) : 289 x 51x 51 mm(11.37"x2.01"x2.01"); Stud size: M10 (3/8"); Max Operating Voltage: DC 48 V; Max Continuous Amp: 600 A

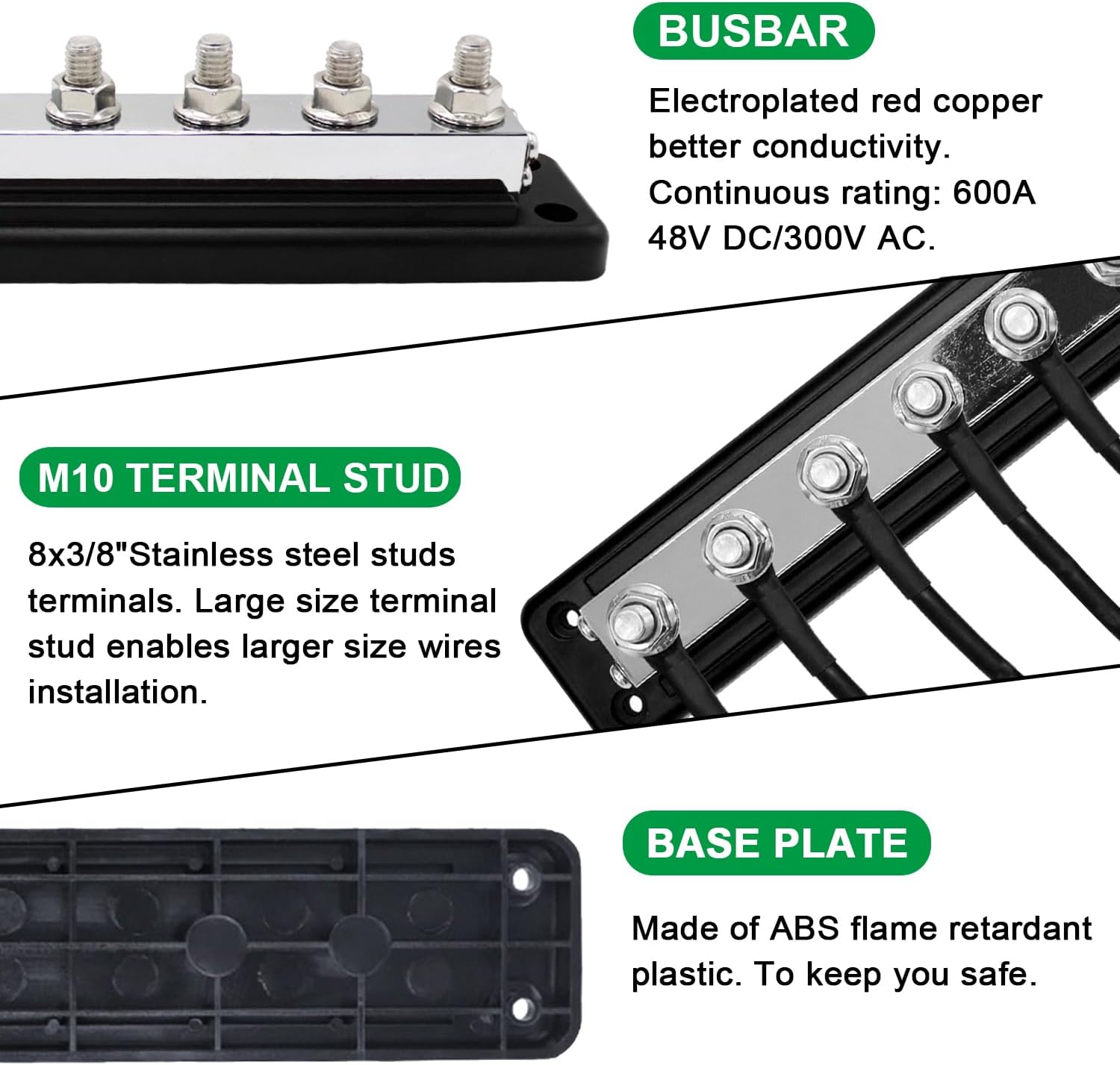

- Busbar: The 12V busbar features a high-power modular connection structure, which strengthens the electrical connections and facilitates assembly, providing a convenient solution for organizing and distributing power
- Highly Conductive: The 19 mm/0.748 inch thick tinned copper distribution block is highly conductive, supporting up to 600 amps of continuous current and withstanding up to 300 volts AC or 48 volts DC
- Features: The base and cover are made of flame-retardant nylon fiberglass reinforced material to ensure mechanical strength and durability, avoiding any external contact at the connections and preventing short circuits or damage
- Terminals: 600A bus bar distribution block with 4 x M10 (3/8 inch) terminal studs (also suitable for M8) is ideal for multi-cell wiring configurations and the stainless steel material improves its corrosion and rust resistance
- Wide Application: Our bus bar terminal block is equipped with 5mm mounting holes for mounting on a wide range of vehicles for cars, camping trailers, RVs, trucks, boats, yachts and other 12-48V applications
| Color | Black |
|---|---|
| Model | 9d07990c-7f41-4932-a0ff-4b4e9d7b3ee8 |
| Voltage | 48 Volts |
| Brand Name | Ambuker |
| Item Weight | 3.02 Pounds |
| Part Number | US3-AOA1149C |
| Manufacturer | Ambuker |
| Material Type | Acrylonitrile Butadiene Styrene (ABS) |
| Mounting Type | Screw Mount |
| Connector Type | Screw |
| Current Rating | 600 Amps |
| Number Of Poles | 4 |
| Centerline Length | 289 Millimeters |
| Number Of Contacts | 4 |
| Number of Positions | 4 |
| Item Dimensions W x H | 2.01"W x 2.01"H |
